Overview

A reference implementation of a customer-support triage service built on the Claude API, plus the course that teaches it — written to be read and taught from, not just run.

Four routes, four capabilities, one coherent domain. Each route introduces exactly one new idea and builds on the one before it.

Three things live here

	What it is	Where
The service	src/ — the Claude API reference implementation the whole course is about. Runs locally; not deployed.	this repo
The course	website/ — Docusaurus site: scenario, setup, six labs with inline knowledge checks, solutions, instructor guide, auto-scored assessment, and four interactive playgrounds.	claude-triage-labs.vercel.app

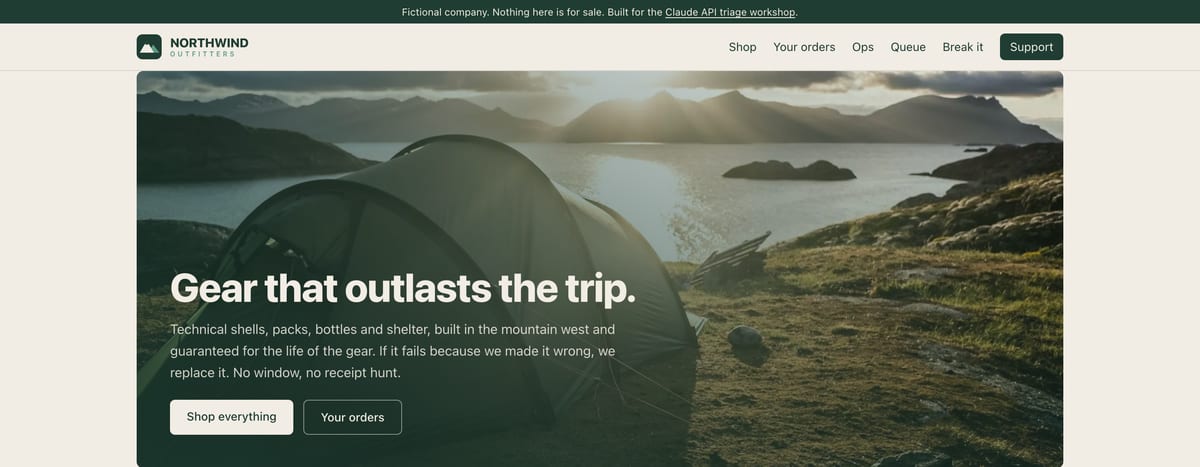

The scenario, made real	storefront/ — Next.js shop for the fictional company. Browse the gear, file a support ticket, watch your own words get classified live. Includes Priya's ops dashboard.	northwind-outfitters.vercel.app

Both public sites deploy from this one GitHub repo on Vercel (two projects, different Root Directories). See website/README.md for the exact dashboard settings — Ignored Build Step is configured in-repo via ignoreCommand, so leave that dropdown on Automatic.

The storefront calls Claude for real, so it is rate-limited and spend-capped (MongoDB Atlas, five per IP per ten minutes, a global daily ceiling, and it fails closed rather than running uncapped).

Start with the scenario. The domain is a real company with a real problem: 4,100 support tickets a week, manual triage as the bottleneck, two failed automation attempts, and an incident where a child's injury report sat unrouted for three days because it opened with "probably nothing." Every design decision in this repo traces back to something on that page, and the labs are much harder to motivate without it.

Route	Capability	The idea it teaches
POST /v1/triage	Structured outputs	The model's output contract is your type system
POST /v1/resolve	Tool use	Claude queries your systems and shows its work
POST /v1/draft	Streaming	Token-by-token delivery over SSE, with real cost accounting
POST /v1/estimate	Token counting	Know the bill before you pay it

Cross-cutting, demonstrated throughout: prompt caching (a ~1,400-word policy handbook cached across every request), usage and cost accounting, typed error handling, and an eval harness with both deterministic scoring and an LLM judge.

---

Quickstart

Full setup, prerequisites, and troubleshooting: curriculum/setup.md. The short version:

npm install

cp .env.example .env

Put your key in .env (get one at console.anthropic.com), then:

npm run smoke

.env and .env.local are loaded automatically by src/lib/env.ts — no dotenv dependency, and a real shell variable always wins over the file.

npm run smoke exercises all four routes in-process and prints the prompt-cache hit on the second call. It costs about $0.10.

To run the service:

npm run dev

curl -s localhost:8787/v1/triage -H 'content-type: application/json' -d '{
  "message": "Order NW-48211 arrived Monday and the zipper separated the second time I wore it. I want a replacement."
}' | jq

---

What each route actually does

POST /v1/triage — structured outputs

Classifies an inbound message into a validated schema: category, urgency, sentiment, extracted entities, escalation flag, and a calibrated confidence score.

The point: there is no JSON.parse in a try/catch, no "respond only with JSON" in the prompt, and no repair loop. One Zod schema (src/schemas.ts) is simultaneously the model's output constraint, the runtime validator, and the TypeScript type your consumers get.

{
  "triage": {
    "category": "product_defect",
    "urgency": "normal",
    "sentiment": "frustrated",
    "summary": "Jacket zipper separated on second wear; wants a replacement.",
    "entities": {
      "order_ids": ["NW-48211"],
      "product_names": ["Ridgeline 3L Shell Jacket"],
      "requested_remedy": "replacement"
    },
    "requires_human": false,
    "escalation_reason": null,
    "confidence": 0.92
  },
  "meta": { "usage": { "cache_hit": true, "estimated_cost_usd": 0.0041, "...": "..." } }
}

POST /v1/resolve — tool use

Gives Claude three tools over a fake back office — lookup_order, lookup_customer, search_policy — and lets it decide what to call, in what order, and when it has enough to act. Returns the decision and the full tool trace.

Production details this route does not skip:

• max_iterations is capped. An uncapped agent loop is an uncapped bill.
• Usage is summed across every turn. The final message's usage covers only the final request; reporting it alone under-reports a 5-turn loop by ~5×.
• The tool trace is returned. In support tooling, "show your work" is an audit requirement.

POST /v1/draft — streaming

Streams a customer-ready reply over Server-Sent Events. Emits three event types: text (reply body), thinking (summarized reasoning, for a collapsed UI panel), and a terminal done carrying stop_reason and full cost.

Two things most streaming demos get wrong and this one doesn't: usage arrives only at the end (via finalMessage()), and a client disconnect must abort the upstream stream or you keep paying for tokens nobody will read.

POST /v1/estimate — token counting

Counts tokens server-side with the real tokenizer and projects monthly cost at a given volume, cached and uncached. No inference, so it's free.

It also reports prefix_meets_cache_minimum — below ~1024 tokens the API silently declines to cache, with no error.

---

Evals

npm run eval

Two measurements, because they answer different questions:

1. Deterministic scoring against a 12-case hand-labelled gold set (evals/dataset.jsonl). Exits non-zero below 80% accuracy, so it works as a CI gate. Also reports confidence calibration — if failures score as confidently as passes, the confidence field is decoration.
2. LLM-as-judge on generated replies, scoring tone compliance against a six-item rubric with required evidence-before-verdict.

A full run costs about $0.20. The gold set is small (12 cases) on purpose: big enough to catch a real regression, small enough that hand-labelling stays honest. One case is 8% of the score, which is itself a lesson — see Lab 6 Q7.

---

Measured behavior

From an actual run against claude-opus-5 (your numbers will vary slightly):

Prompt caching — two identical-prefix calls to /v1/triage:

	call 1 (cold)	call 2 (warm)
cache_creation_input_tokens	4,711	0
cache_read_input_tokens	0	4,711
input_tokens (fresh)	112	112
estimated cost	$0.0334	$0.0063

81% cheaper on the warm call. Note that the cold call costs more than no caching at all ($0.0334 vs $0.0275) — the write premium. Caching one-shot prefixes loses money; see Lab 5 Q5.

Tool loop — /v1/resolve on a defective-jacket ticket resolved in 3 iterations, calling lookup_order → lookup_customer → search_policy → search_policy, and cited clauses 2.2, 2.4, 2.5, and 6.3 — including 6.3 ("do not offer a discount before the problem is fixed"), which is the clause that stops it from leading with a goodwill code.

Judge variance — three eval runs scored the tone judge at 3/4, 1/4, and 2/4 on a four-case sample. Same route, same rubric, same model. A metric with that spread cannot detect a real change of any plausible size, which is exactly why Lab 6 Q1 gates CI on the deterministic half and not the judge.

The judge still earned its keep, because what it flagged was consistent and correct even though how many it flagged was not. It caught the drafter prompt promising an immediate refund, which handbook clause 2.3 forbids — the prompt had restated section 1's tone rules but left clause 2.3 unrestated in the handbook text, and the model did not find it under pressure. Fixed in src/prompts.ts by hoisting the hard constraints into the role instructions, plus two later findings (opening with a pleasantry instead of the resolution; "process that refund today" reading as immediate).

The stopping decision is part of the demo. After those fixes I did not re-run to show an improved pass rate. At n=4 with a 50-point spread, any number I produced would be noise dressed as evidence, and tuning a prompt until a noisy judge agrees is how you overfit to your own metric. The defensible claim is the narrow one: the judge's own rationale on eval-03 now credits the reply for stating the 5-7 business day timeline, which is the specific behavior the fix targeted. Validating the rate needs a bigger sample — see Lab 6 Q7.

Eval — 11/12 and 12/12 across two runs. The only case that flips is eval-11, the one labelled deliberately ambiguous — and it scored 0.45–0.50 confidence both times, against a mean of ~0.84 on the cases that pass.

That is the calibration instruction in TriageSchema doing its job: the model is not merely wrong sometimes, it is wrong exactly where it reports being unsure. A confidence field with that property supports threshold routing; one that reports 0.9 on everything does not. See Lab 2 Step 2.

It also means a 12-case set cannot resolve a difference smaller than 8%. Sizing the set is Lab 6 Q7.

---

Layout

src/                   THE SERVICE
  config.ts            model id, per-route effort, max_tokens, pricing
  anthropic.ts         the single shared client
  schemas.ts           Zod schemas — output contract AND API types
  prompts.ts           system prompt assembly with cache breakpoints
  routes/              one file per capability
  tools/               tool definitions + the fake back office
  lib/                 usage accounting, error mapping, SSE
data/
  policies.md          the ~1,400-word handbook that gets cached
  inbound-queue.json   20 tickets, actually triaged, used by the queue demo
  orders.json          fake OMS
  customers.json       fake CRM
evals/                 gold set + harness (deterministic + LLM judge)
scripts/               smoke test, queue triage, policy sync
assets/brand/          the Northwind mark

curriculum/            THE COURSE (canonical markdown)
  scenario.md          who Northwind is and why any of this exists
  setup.md             prerequisites and the two-terminal workflow
  labs/, solutions/    six labs with inline knowledge checks
docs/architecture.md   the design decisions and why

website/               THE COURSE SITE (Docusaurus)
  scripts/sync-docs    generates docs/ from the markdown above
  plugins/             remark plugin turning ```quiz fences into components
  src/components/      cost explorer, trace stepper, cache inspector, queue

storefront/            THE SCENARIO, MADE REAL (Next.js)
  app/support/         the live triage form with the pipeline visualiser
  app/ops/             Priya's dashboard
  lib/pipeline.ts      one generator, two consumers: SSE and plain JSON
  lib/ratelimit.ts     MongoDB spend ceiling, fails closed

Nothing under website/docs/ is hand-written — it is generated from curriculum/ and docs/ by website/scripts/sync-docs.mjs, which also rewrites relative links so the markdown stays readable on GitHub.

---

Curriculum

This repo doubles as a hands-on course. Read curriculum/scenario.md for the domain, follow curriculum/setup.md to get running, then curriculum/00-concept-map.md for the technical map.

Lab	Topic	Time
1	Your first call, and reading usage	20 min
2	Structured outputs and schema design	35 min
3	Tool use and the agentic loop	45 min
4	Streaming and SSE	30 min
5	Prompt caching and cost	35 min
6	Evals and LLM-as-judge	45 min

Instructors: curriculum/01-instructor-guide.md has timing, the failure modes learners hit, and what to do when a lab goes sideways. Solutions are in curriculum/solutions/.

---

Notes on model and API choices

• Model: claude-opus-5. Set TRIAGE_MODEL to override.
• Thinking: adaptive. budget_tokens is removed on this model family and returns a 400 — the replacement is output_config.effort.
• Effort varies per route (low for triage, high for resolve, medium for draft) and lives in src/config.ts so the cost/quality tradeoff is a one-line experiment, not a scavenger hunt.
• Pricing in config.ts is Claude Opus 5 list price at time of writing. Verify against current pricing before quoting numbers to anyone.
